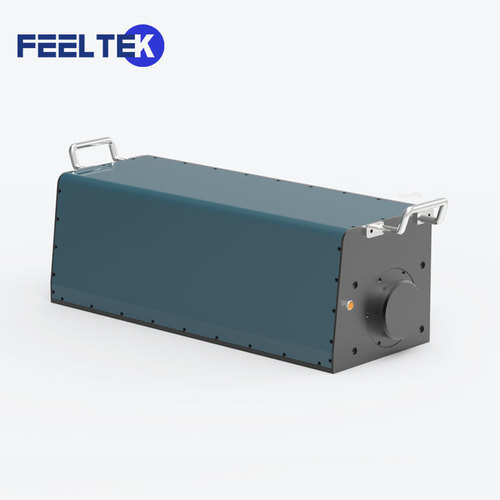

Super large field process ing Large Z- -depth curved surface processing Extreme fine focus spot

Optional water cooling design, it can be applied to

high- temperature drift requi rements.

Automatic focal adjust option for choose,

finish work field and focal length switch through software.

Focal adjust option: automatic, manual.













Large Z-depth curved surface processing

Through the dynamic focus system control, the Z-depth can reach 200mm with fine spot quality under 800*800mm to 1200*1200mm work field. It is specifically suited for the env ironment of large height differences as well as large curved surface processing and is widely used in automotive interior and exterior accessories.



Flexible large, 3D field processing

Through the dynamic focus system control, it can be operated from 100*100*40mm to 1200*1200*200mm work field.



Application Highlight

●  large field marking

●  Engraving

●  Cleaning

●  Mould Texture

●  Filming

●  3D printing

●  3D surface treatment

●  Laser Scribing

●  Mould Texture

● Precision Processing



                                    Automotive components application                                                                                     Super large field texture marking



                                      One-time curved surface etching



Product Technical Information



Items	Output Voltage(VDC)	±24VDC
	Current(A)	12A
	Protocol	XY2-100 Protocol
	Weight(KG)	21.5
	Size(mm)	547.5*200*184.5
Optical Specifications	Aperture Size(mmm)	40
	Input beam diameter(mm)	7



Galvanometer Specifications	Scan Angle(°)	±10
	Repeatability(μrad)	5
	Max.Gain Drift(ppm/k)	100
	Max.Offset Drift(μrad/k)	30
	Long-term drift over 8h(mrad)	≤0.2
	Tracking Error(ms)	≤0.68
	Max.processing speed(charaters/s)	350@400x400



Working Field &Spot Diameter	Working Field(mm)	200x200x20	300x300x50	400x400x100	500x500x100	600×600x150	800x800x200	1000x1000x200	1200x1200x200
	The Min.Spot Diameter@1/e2(mm)	0.014	0.019	0.025	0.030	0.034	0.044	0.056	0.068
	Focal length(mm)	240	360	480	600	720	960	1200	1440



Mechanical Drawing
