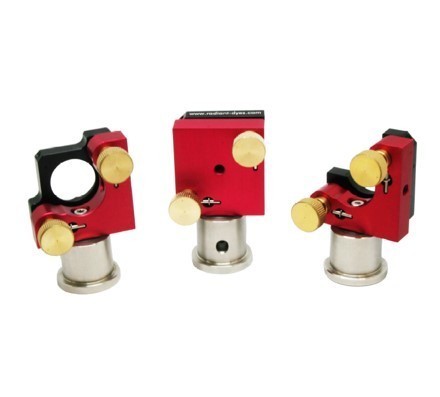

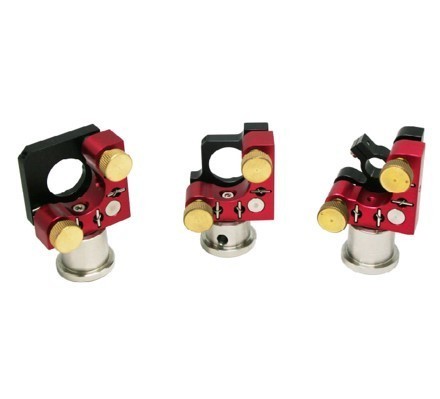

Model

MDI

MDI-HS

MDI-H


Description

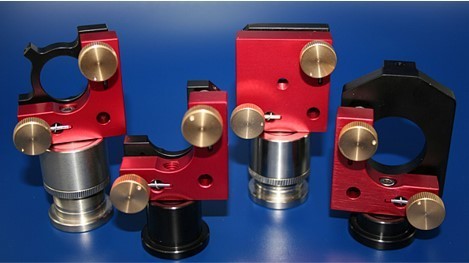

 The MDI is our most popular mirror     mount. The mount is available with         different front plates (from closed up to   two inch) and two or three screws. It is   our standard mirror mount which can     be used for most applications in the lab.

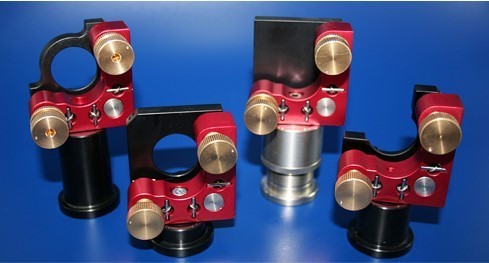

 The MDI-HS is the high stable version of   the MDI mirror mount. The MDI-HS can   be used for applications where a high         stability is necessary.

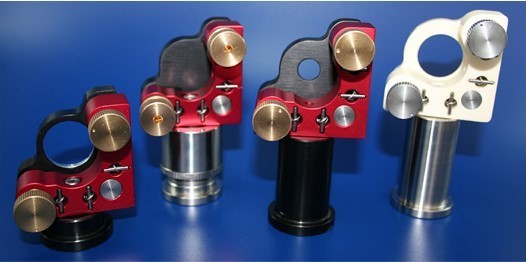

 The MDI-H is the most stable mirror mount     in our product range. The optics are fixed       by a retaining ring instead of a set screw.

Feature

• Stable Mirror Mount
• Open or closed body plate
• Different front-plates available
• M6 thread with M4 inner lowering (standard)
• M4 or M8 thread available on       request
• #8-32 or ¼"-20 thread available   on request

• High-stable Mirror Mount
• 4 springs
• Stainless steel insert for                  stabilisation
• Thicker open body plate
• Different front-plates available
• M6 thread with M4 inner lowering  (standard)
• M4 or #8-32 or ¼"-20 thread           available on request

• High-stable Mirror Mount
• Standard MDI-H with axial mounting    ring for distortion free wavefront
• 4 springs
• Stainless steel insert for stabilisation
• Thicker open body plate
• Thicker front plates
• Different front-plates available
• M6 thread with M4 inner lowering       (standard)
• M4 or #8-32 or ¼"-20 thread available on request

Screw Option

Fine thread screws Model 4:

with 250 μm/turn (100 TPI)

with 150 μm/turn (170 TPI)

with 100 μm/turn (250 TPI)

Micrometer screws

with 500 μm/turn (50 TPI)

with 250 μm/turn (100 TPI)

with 100 μm/turn (250 TPI)

with 500 μm/turn

with 250 μm/turn

with 100 μm/turn

with 500 μm/turn (50 TPI)

with 250 μm/turn (100 TPI)

with 100 μm/turn (250 TPI)

Drawing

Drawing_MDI

Drawing_MDI-HS
