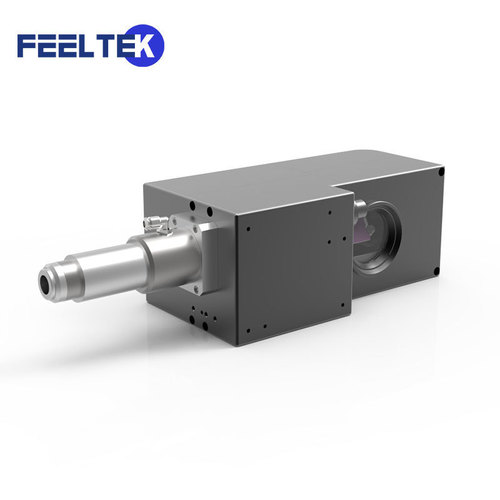

Compact design, easy for integration

CNC she11, dust prevention, compact structure, easy to integrate.
Focal 1ength data preservation when switching work field.



Easy to switch work field

The adjustment knob is used to switch between different work fields without replacing any parts.



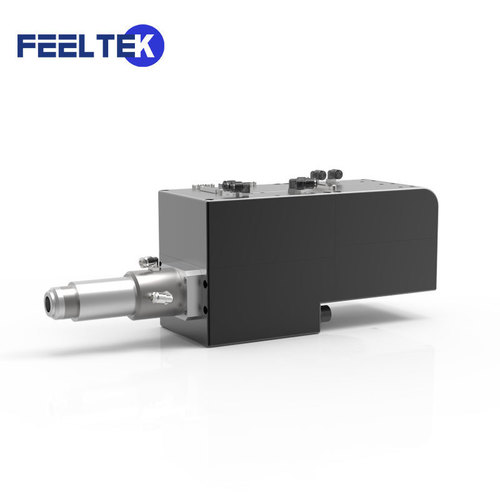

Water cooling design

Optional water cooling design, it can be applied to high-temperature drift requirements.



Flexible large field processing

Double driving Z axis dynamic focus module design, response frequency≥100HZ@±10°,

easy to achieve Z depth 150mm@300mmx300mm, applied to flat surface, 3D surface high speed processing.







Highlight application: 3D printing

FR15-F applies with the dynamic focus system control, it can be applicated in SLS, SLM.

   High Precision

   As the number of processing layers increases, the dynamic axis coordinately adjust the focus and adjust the spot in real- time. The minimum spot of FR15-F(F15) can directly reach 0. 018mm.











   High Efficiency

    To improve higher processing efficiency, FEELTEK develops the multi-scanheads solution,

    as well as its corresponding platform.













3D Surface Processing

High Efficiency

The FR15-F applies dynamic focus control technology, breaks the limitation of traditional marking, and can do no distortion marking in the 1arge-scale surface, 3D surface, steps, cone surface, slope surface and other objects.



Application Highlight

●  3D laser marking

●  Engraving

●  Clearning

●  Precision mould

●  3D surface treatment

●  Texture processing

●  PCB marking



                                                            3D printing                                                                                                                            Engraving





Product Technical Information



Items	Output Voltage(VDC)	±15VDC
	Current(A)	5A(2sets)
	Protocol	XY2-100 Protocol
	Weight(KG)	7.5
	Size(mm)	316.7*125*154.7(Pro) / 333.7*125*154.7(P2)
Optical Specifications	Aperture Size(mmm)	15
	Input beam diameter(mm)	7, 8.5



Galvanometer Specifications	Product line	Pro	P2
	Scan Angle(°)	±11	±11
	Repeatability(μrad)	8	5
	Max.Gain Drift(ppm/k)	100	50
	Max.Offset Drift(μrad/k)	30	15
	Long-term drift over 8h(mrad)	≤0.2	≤0.1
	Tracking Error(ms)	≤0.23	≤0.15
	Max.processing speed(charaters/s)	560@200x200	650@200x200



Working Field &Spot Diameter	Working Field(mm)	100x100x20	200x200x60	300x300x150	400x400x150	500x500x150	600×600x150
	The Min.Spot Diameter@1/e2(mm)	0.018	0.033	0.046	0.059	0.072	0.085
	Focal length(mm)	120	240	360	480	600	720





Mechanical Drawing
