Shutter
![[ Radiant Dyes ]<br>Shutter & Controller](/thum_img/mjct/goods_img3/9dac5cf94e0f82cab186041cc1cae007_water_4de0b559c44a49f5f544fca08f3bc282_c0_w500_h500.jpg)
)
Shutter
We offer a wide range of Servo motors for lens mount with counter weight for titanium and compact shutters, Beam Blockers for titanium and compact shutters and different sizes of Servo Motors with various controller settings.
|
|
Mini Servo Motor |
Titanium Mini Servo Motor |
Medium Speed Servo Motor |
Compact Titanium Gear High Speed Servo Motor |
|
Configuration |
Digital |
|||
|
Dead band |
- |
- |
8 μs |
8 μs |
|
Operating speed (at 4.8V) |
0.055 s/60° without load |
0.047 s/60° without load |
0.052 s/60° without load |
0.034 s/60° without load |
|
Center position pulse length |
760 μs |
760 μs |
760 μs |
760 μs |
|
Stall Torque (at 4.8V) |
2.3 kg·cm |
1.92 kg·cm |
2.1 kg·cm |
3.9 kg·cm |
|
Maximum pulse frequency |
333 Hz |
333 - 560 Hz |
560 Hz |
560 Hz |
|
Maximum pulse period |
3000 μs |
3000 μs |
1786 μs |
760 μs |
|
Minimum pulse length (typical) |
500 μs Channels A,B,C,D preprogrammed |
|||
|
Maximum pulse length (typical) |
1000 μs Channels A,B,C,D preprogrammed |
|||
|
Image |
|
|
|
|
For more information please refer to Datasheet.

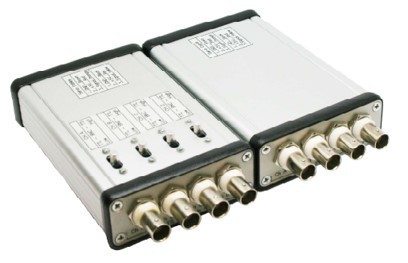

Controller
All channels are preprogrammed with factory default parameters. The time base values are changed to 3000 μs. These parameters are saved to the EEPROM and if there is a need for modification, the parameters have to be re-saved with the command save. To restore the saved parameters, the command restore has to be sent to the controller.
- Extension cables : of 0,5m, 1m, or 2m available
Option
- Arms : Different arm lengths (15mm, 38mm and 52mm) for titanium and compact shutter
- Double arms for mini shutters : Optional for the wavelengths to avoide reflexes, we offer shutters in aluminum sand blasted or mat black.
