CO2 (9.3um / 10.6um)
![[ Wavelength-oe ]<Br>BXZ Series <br>Zoom CO2 Laser Beam Expander](/thum_img/mjct/goods_img3/773d73429dcfd581aa5171300cda1caa_water_4de0b559c44a49f5f544fca08f3bc282_c0_w500_h500.jpg)
)
BXZ Series zoom expanders are developed to expand laser beams with variable magnifications.

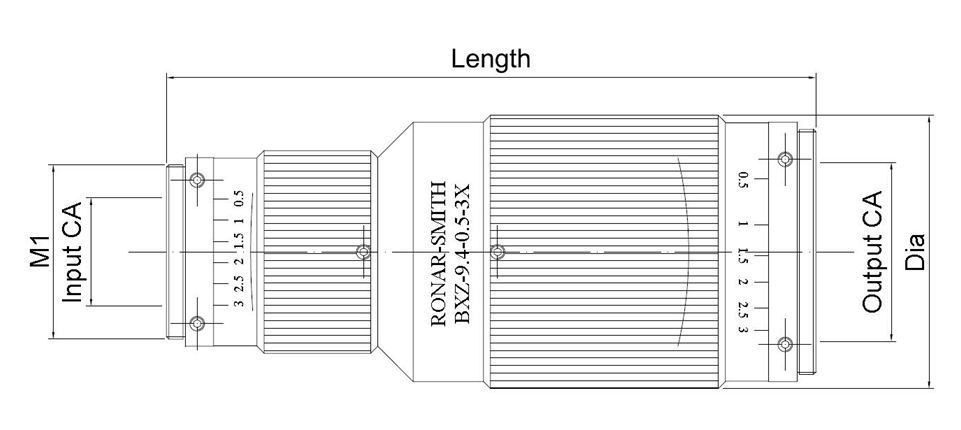

| Part Number | Magnification | Max. Input Beam dia (1/e2) | Input CA (mm) | Output CA (mm) | Length (mm) | Wavelength | Type |
| BXZ-9.4-0.25-2X | 0.25x-2x | 10@0.5x , 10@2x | 27.0 | 38.0 | 119.9 | 9.4μm | Manual |
| BXZ-9.4-0.3-1X | 0.3x-1x | 9@0.3x , 10@1x | 14.0 | 14.0 | 82.3 | 9.4μm | Manual |
| BXZ-9.4-0.5-3X | 0.5x-3x | 10@0.5x , 8@3x | 23.0 | 38.0 | 138.0 | 9.4μm | Manual |
| BXZ-9.4-1-3X | 1x-3x | 9@1x , 6@3x | 18.0 | 30.0 | 126.4 | 9.4μm | Manual |
| BXZ-9.4-1-4X | 1x-4x | 10@1x , 8@4x | 18.0 | 48.0 | 140.9 | 9.4μm | Manual |
| BXZ-9.4-2-8X | 2x-8x | 6@2x , 3@8x | 10.0 | 36.0 | 172.0 | 9.4μm | Manual |
| BXZ-9.4-0.5-3X-G8 | 0.5x-3x | 8@0.5x , 5@3x | 20.0 | 58.0 | 383.0 | 9.4μm | Galilean |
| BXZ-9.4-1-4X-G7 | 1x-4x | 7@1x , 3@4x | 15.0 | 49.0 | 252.0 | 9.4μm | Galilean |
| BXZ-10.6-0.5-3X | 0.5x-3x | 10@0.5x , 8@3x | 23.0 | 38.0 | 138.0 | 10.6μm | Manual |
| BXZ-10.6-1-3X | 1x-3x | 9@1x , 6@3x | 18.0 | 30.0 | 126.4 | 10.6μm | Manual |
| BXZ-10.6-1-4X | 1x-4x | 10@1x , 8@4x | 18.0 | 30.0 | 126.4 | 10.6μm | Manual |
| BXZ-10.6-2-6X-A | 2x-6x | 3.5@2x , 3@6x | 18.0 | 28.0 | 213.0 | 10.6μm | Manual |
| BXZ-10.6-2-8X | 2x-8x | 5@2x , 3@8x | 10.0 | 36.0 | 182.0 | 10.6μm | Manual |
| BXZ-10.6-1-4X-G | 1x-4x | 6@1x , 4@4x | 18.0 | 28.0 | 150.0 | 10.6μm | Galilean |
| BXZ-10.6-1.5-3X-G9 | 1.5x-3x | 7@1.5x , 9@3x | 18.0 | 38.0 | 114.5 | 10.6μm | Galilean |
