RealLight
![[ RealLight ]<br>14BTF<br>Diode Laser Components](/thum_img/mjct/goods_img3/3314523c0700e386f029554b279d97de_water_4de0b559c44a49f5f544fca08f3bc282_c0_w500_h500.jpg)
)

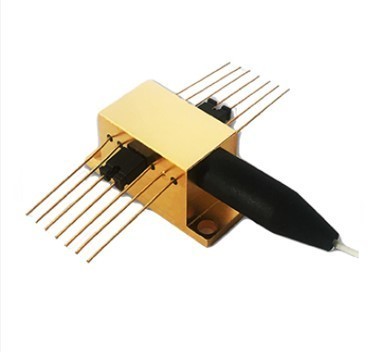

14BTF Diode Laser Components
14BTF diode laser components are RealLight’s AW series laser modules, available in fiber-coupled configuration with single emitter. Equipped with photodiode and thermistor, these lasers feature compact size, superior power stability, high reliability and more.
- Compact size
- High reliability
- Superior power stability
- Excellent beam quality
- Various wavelengths
|
Package Type |
14BTF |
|||
|
Center Wavelength（nm） |
405 |
450 |
520 |
|
|
Optical |
CW Output Power / Pop (mW) |
100 |
100 |
100 |
|
Wavelength Tolerance (nm) |
±5 |
±10 |
±10 |
|
|
Spectral Width / △λ (nm) |
＜2 |
＜2 |
＜3 |
|
|
Electrical |
Threshold Current / Ith (A) |
＜0.06 |
＜0.05 |
< 0.09 |
|
Operating Current / Iop (A) |
＜0.14 |
＜0.14 |
0.23 |
|
|
Operating Voltage / Vop (V) |
＜6 |
＜6.5 |
< 7 |
|
|
Slope Efficiency / ηes (W/A) |
＞1.2 |
＞0.9 |
> 0.5 |
|
|
Thermistor / Rt (kΩ/β (25℃)) |
10±5% / 3450 |
|||
|
TEC Max Current Imax (A) |
2.2 |
|||
|
TEC Max Voltage Vmax (V) |
8.7 |
|||
|
Fiber |
Fiber Core Diameter / dcore (μm) |
105 |
||
|
Fiber Cladding Diameter / Dclad (μm) |
125 |
|||
|
Fiber Coating Diameter / Dbuffer (μm) |
250 |
|||
|
Fiber Length / L (cm) |
100±10 (Customizable) |
|||
|
Numerical Aperture / NA |
0.22 |
|||
|
Connector |
FC/PC, SMA905 |
|||
