RealLight

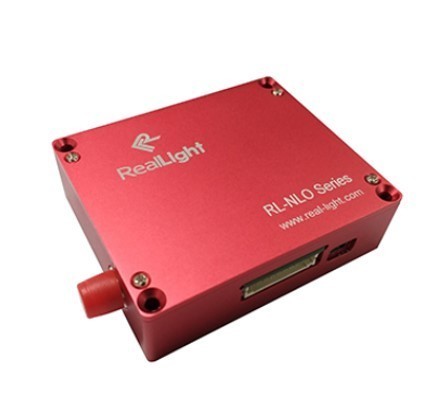

![[ RealLight ]<br>NLMO Series<br>Narrow Linewidth Laser](/thum_img/mjct/goods_img3/2855cfccc6bfe6f49bf827e581c92436_water_4de0b559c44a49f5f544fca08f3bc282_c0_w500_h500.jpg)
)
NLMO Series Single Mode Narrow Linewidth Laser
The NL series narrow linewidth diode lasers are RealLight’s self-developed wavelength-stabilized lasers,deliver high output power and excellent stability at 638nm, 784nm, 785nm, 808nm, 830nm, 976nm or 1064nm output wavelengths, with power ranging from 100mW to 800mW.
- Excellent wavelength stability ±7pm@4h
- Power stability < ±2%
- Low power consumption, typical < 5W
- Compact design, easily integrated
|
Optical Parameters |
||
|
Center Wavelength (nm) |
785 |
1064 |
|
Output Power (mW) |
100 |
350 |
|
Wavelength Tolerance (nm) |
±0.5 |
|
|
Linewidth (nm) |
<0.1 |
|
|
Wavelength Stability |
±7pm@4h Typ. |
|
|
Power Stability |
±2% @4h Typ. |
|
|
SMSR |
40dB |
|
|
System Parameters |
||
|
Adjustbility % Full Power |
0~100% |
|
|
Warm up Time (min) |
15 |
|
|
Control Interface |
PH2.0-10P , USB |
|
|
Supply Voltage |
5VDC/2A |
|
|
Power Consumption |
<5W Typ. |
|
|
Storage Humidity |
0~80% RH |
|
|
Storage Temperature (℃) |
0~55 |
|
|
Operating Temperature (℃) |
10~35 (heat sink is required) |
|
|
Weight (g) |
<150 |
|
|
Dimensions (mm) |
76.2×63.5×22 |
|
NLMO Series Multi-mode Narrow Linewidth Laser
- Excellent wavelength stability ±7pm@4h
- Power stability < ±2%
- Low power consumption, typical < 5W
- Compact design, easily integrated
|
Optical Parameters |
||||||
|
Center Wavelength (nm) |
638 |
785 |
808 |
830 |
976 |
1064 |
|
Output Power (mW) |
500 |
600 |
600 |
600 |
800 |
800 |
|
Wavelength Tolerance (nm) |
±0.5 |
|||||
|
Linewidth (nm) |
<0.1 |
<0.1 |
<0.3 |
<0.1 |
<0.3 |
<0.1 |
|
Wavelength Stability |
±7pm@4h Typ. |
|||||
|
Power Stability |
±2% @4h Typ. |
|||||
|
SMSR |
>35 |
>40 |
||||
|
System Parameters |
||||||
|
Adjustbility % Full Power |
0~100% |
|||||
|
Warm up Time (min) |
15 |
|||||
|
Control Interface |
PH2.0-10P , USB |
|||||
|
Connector |
FC/PC, SMA905 |
|||||
|
Output Fiber |
105 μm，0.22 NA |
|||||
|
Supply Voltage |
5V DC@ 2 A |
|||||
|
Power Consumption |
<5W Typ. |
|||||
|
Storage Humidity |
0~80% RH |
|||||
|
Storage Temperature (℃) |
0~55 |
|||||
|
Operating Temperature (℃) |
10~35 (heat sink is required) |
|||||
|
Weight (g) |
<150 |
|||||
|
Dimensions (mm) |
76.2×63.5×22 |
|||||

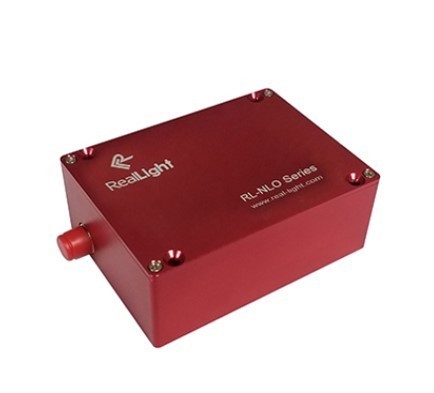

NLMO Series Dual-wavelength Narrow Linewidth Laser
- Switch output between two wavelengths
- Excellent wavelength stability ±7pm@4h
- Built-in TEC, typical power consumption < 5W
- Compact design
- USB and I/O interface are available
|
Optical Parameters |
||||
|
Center Wavelength (nm) |
784/785 |
785/1064 |
||
|
Output Power (mW) |
500 |
500 |
500 |
800 |
|
Wavelength Tolerance (nm) |
±0.5 (each wavelength) |
|||
|
Linewidth, each wavelength (nm) |
<0.1 |
|||
|
Wavelength Stability |
±7pm@4h Typ. |
|||
|
Power Stability |
±2% @4h Typ. |
|||
|
SMSR |
40dB |
|||
|
System Parameters |
||||
|
Adjustbility % Full Power |
0~100% |
|||
|
Warm up Time (min) |
15 |
|||
|
Control Interface |
PH2.0-12P, USB |
|||
|
Connector |
FC/PC, SMA905 |
|||
|
Output Fiber |
105 μm, 0.22 NA |
|||
|
Supply Voltage |
5VDC/2A |
|||
|
Power Consumption |
<5W Typ. |
|||
|
Storage Humidity |
0~80% RH |
|||
|
Storage Temperature (℃) |
0~55 |
|||
|
Operating Temperature (℃) |
10~35 (heat sink is required) |
|||
|
Weight (g) |
<150 |
|||
|
Dimensions (mm) |
86×63.5×32 |
|||
