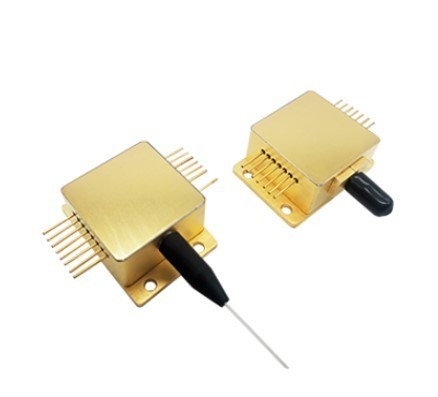

09HHL Diode Laser Components
09HHL diode laser components are RealLight’s AW series single emitter laser modules, available in fiber coupled or free space configurations. The free space output lasers feature excellent beam pointing stability, while the fiber-coupled output lasers deliver high coupling efficiency, good beam quality, efficient heat dissipation, compact size, high power stability and more. All 9-pin HHL packaged lasers are equipped with TE cooler, thermistor and photodiode.
- Efficient heat dissipation
- High reliability
- Superior power stability
- Excellent beam quality
- Various wavelengths
|
Package Type |
09HHL-T |
09HHL-T |
09HHL-TG |
|||||||
|
Center Wavelength（nm） |
808 |
450 |
638 |
808 |
9XX |
1064 |
808 |
976 |
||
|
Optical |
CW Output Power / Pop (W) |
3 |
10 |
4 |
1 |
8.5 |
15 |
10 |
6 |
9 |
|
Wavelength Tolerance (nm) |
±3,±10 |
±0.5 |
||||||||
|
Spectral Width / △λ (nm) |
＜4 |
＜0.3 |
||||||||
|
Temperature Drift of Wavelength / △λ/△T (nm/℃) |
0.3 |
0.01 |
||||||||
|
Electrical |
Threshold Current / Ith (A) |
0.37 |
1.39 |
0.4 |
0.4 |
1.4 |
0.7 |
0.7 |
1.5 |
0.6 |
|
Operating Current / Iop (A) |
3.1 |
11 |
3.5 |
1.5 |
11 |
18 |
13.5 |
11.5 |
12 |
|
|
Operating Voltage / Vop (V) |
2.3 |
1.9 |
4.4 |
2 |
2 |
1.9 |
1.8 |
2 |
1.9 |
|
|
PD Parameter / Ipd (μA) |
＜2000 |
|||||||||
|
Thermistor / Rt (kΩ/β (25℃)) |
10±5% / 3450 |
|||||||||
|
TEC Max Current Imax (A) |
6 |
|||||||||
|
TEC Max Voltage Vmax (V) |
9.8 |
|||||||||
|
Slope Efficiency / ηes (W/A) |
1.0 |
1.0 |
0.9 |
1.0 |
0.9 |
0.9 |
0.8 |
0.8 |
0.8 |
|
|
Fiber |
Fiber Core/Cladding Diameter Dcore（μm） |
—— |
105/125, 200/220 |
|||||||
|
Fiber Length / L (cm) |
—— |
100±10（customizable） |
||||||||
|
Numerical Aperture / NA |
—— |
0.22 |
||||||||
|
Connector |
—— |
FC/PC, SMA905, bare ferrule |
||||||||

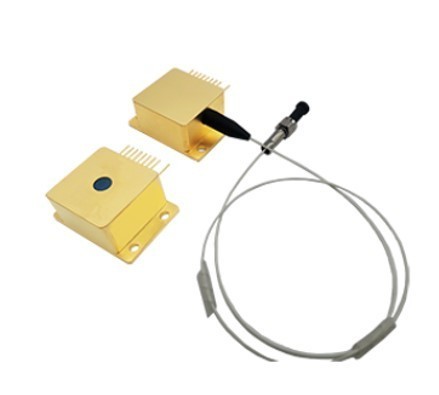

14HHL / 15HHL Diode Laser Components
14HHL and 15HHL diode laser components are RealLight’s AW series multi-function laser modules, available in fiber detachable or fiber coupled configurations. These lasers are equipped with aiming beam, fiber detector,photodiode and thermistor.
- Compact size
- Efficient heat dissipation
- High reliability
- Superior power stability
- Excellent beam quality
- Various wavelengths
|
Package Type |
14HHL |
15HHL |
|||||||||
|
Center Wavelength（nm） |
450 |
808 |
9XX |
1064 |
450 |
808 |
9XX |
1064 |
|||
|
Optical |
CW Output Power / Pop (W) |
4 |
9 |
10 |
20 |
10 |
4 |
9 |
10 |
20 |
10 |
|
Wavelength Tolerance (nm) |
±3，±10 |
||||||||||
|
Spectral Width / △λ (nm) |
＜4 |
||||||||||
|
Temperature Drift of Wavelength / △λ/△T (nm/℃) |
0.3 |
||||||||||
|
Aiming Beam |
Output Power / Pa (mW) |
2 |
|||||||||
|
Wavelength / λa(nm) |
650±10 |
||||||||||
|
Voltage / Va (V) |
2.2，5.0 |
||||||||||
|
Electrical |
Threshold Current / Ith (A) |
0.4 |
1.2 |
0.55 |
1 |
1.1 |
0.4 |
1.2 |
0.55 |
1 |
1.1 |
|
Operating Current / Iop (A) |
3.5 |
10 |
11 |
23.5 |
10.5 |
3.5 |
9.5 |
11 |
23.5 |
10.5 |
|
|
Operating Voltage / Vop (V) |
4.4 |
2 |
1.8 |
2 |
1.7 |
4.4 |
2 |
1.8 |
2 |
1.7 |
|
|
Slope Efficiency / ηes (W/A) |
1.1 |
0.9 |
0.9 |
0.9 |
0.9 |
1.1 |
0.9 |
0.9 |
0.9 |
0.9 |
|
|
PD Parameter / Ipd (μA) |
<3000 |
<2000 |
|||||||||
|
Thermistor / Rt (kΩ/β (25℃)) |
10±1% / 3450 |
||||||||||
|
TEC Max Current Imax (A) |
6 |
||||||||||
|
TEC Max Voltage Vmax (V) |
9.8 |
||||||||||
|
Fiber |
Fiber Core/Cladding Diameter Dcore（μm） |
105/125、200/220 |
|||||||||
|
Fiber Length / L (cm) |
100±10（customizable） |
||||||||||
|
Numerical Aperture / NA |
0.22 |
||||||||||
|
Connector |
SMA905 |
FC/PC，SMA905 |
|||||||||
