CNI Laser

[ CNI Laser ]

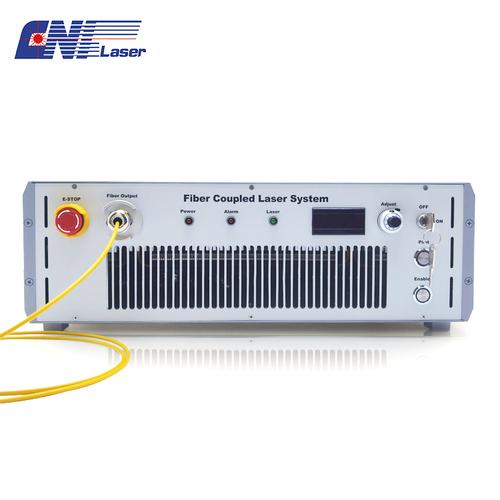

High Power Fiber Coupling Diode Laser System

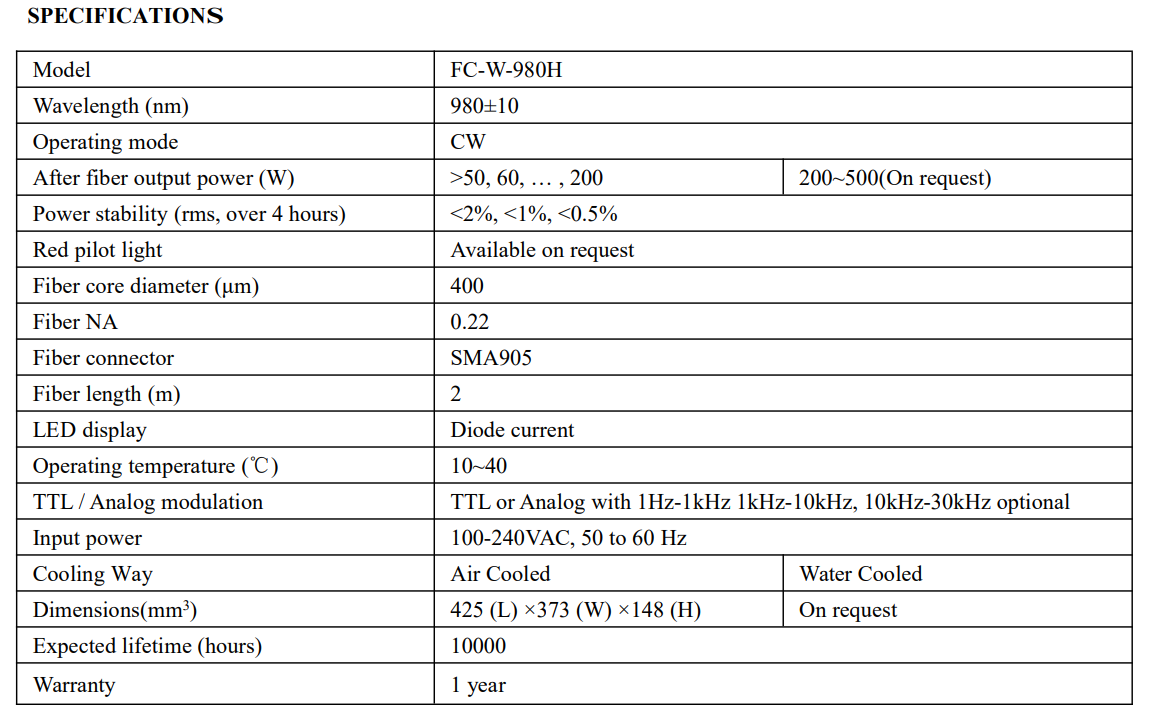

사양
Wavelength : 980+/-10nm
Operating mode : CW
Output power : >50, 60, ..., 200W
Power stability(rms, over 4 hours) : <2%, <1%, <0.5%
Fiber core diameter : 400um / connector : SMA905
Fiber length : 2m
Data sheet
다운로드
모 델
FC-W-980H
브랜드
CNI Laser

FC-W-980H/50~500W

HIGH POWER FIBER COUPLING DIODE LASER SYSTEM AT 980 nm

The FC-W-980H series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
