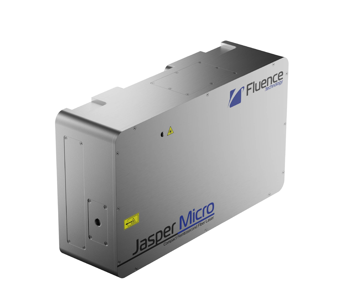

Jasper Micro
Compact Femtosecond Fiber Laser

사양
Proven stability & exceptional lifetime with average power of up to 7 W
Maximum pulse energy of up to 5.0 µJ
Maximum width tunability of < 250 fs – 20 ps in ultra-small footprint
Passively cooled compact laser head
Custom Envelope Burst (CEB) option
5-year warranty on the oscillator and 2-year warranty on the complete laser as a standard

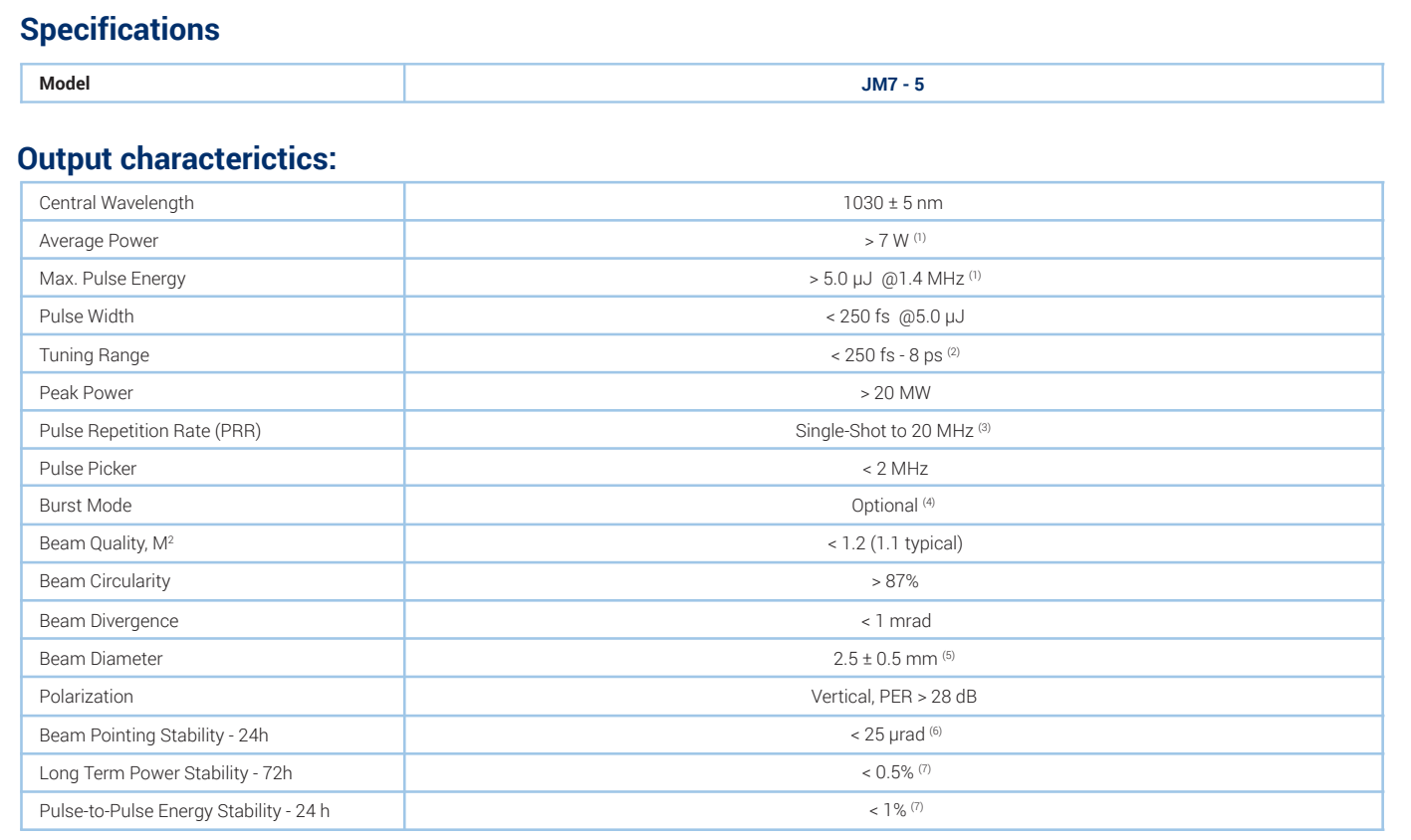

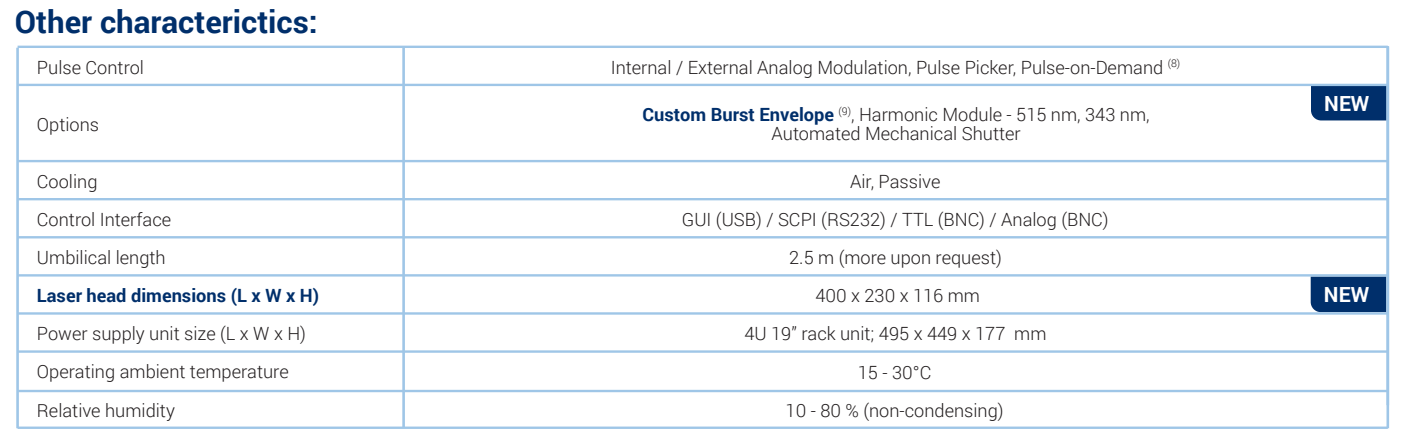

Data sheet
다운로드
브랜드
Fluence

Jasper Micro combines all the essential features of the most advanced femtosecond laser within a tiny box. It includes a pulse picker, burst mode with envelope adjustment (CEB), and pulse width tuning ranging from < 250 fs to 8 ps with pulse repetition rate of up to 20 MHz for maximum flexibility.

With market-leading peak power from such a compact system, Jasper Micro sets a new standard in femtosecond laser technology. The all-fiber, SESAM-free design ensures long-term, maintenance-free performance, along with superior stability and exceptional beam quality. Jasper Micro is passively cooled and can be mounted in any orientation, enabling easy OEM integration into virtually any workstation.
