HIGHLIGHTS :

• No SESAM, all-PM-fiber

• Passive Interference Modelocking

• Unprecedented lifetime

• Nothing to degrade



SPECIFICATIONS :

• Average power : > 20mW

• Wavelength : 1030nm

• Chirped pulse, compression option available < 200fs

• Pulse energy : > 1nJ

• Repetition rate : 20MHz



APPLICATIONS :

• Seeder for ultrafast amplifiers

• Low power source for biophotonics

• Testing ultrafast instrumentation

• Ultrafast science

• Two-photon microperimetry

M. Marzejon, et al. Two-photon microperimetry with picosecond puls, Biomedical Optics Express, 12, 462-479, 2021

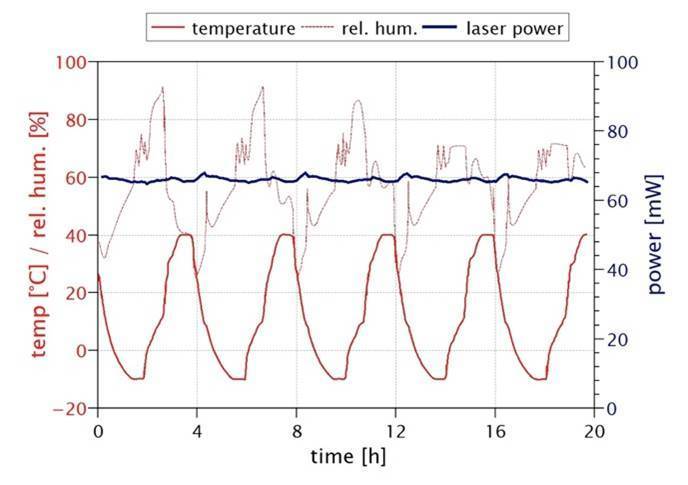

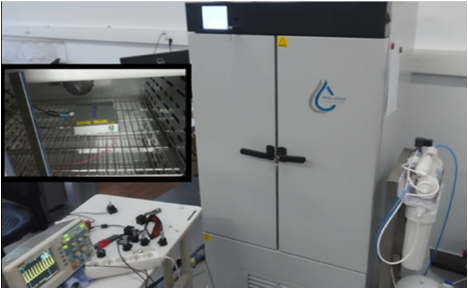

Oscillator Technology Tested While Working :







• Temperature cycling -10 to +40 Celsius degrees



• Relative humidity: 20 - 95%



• Acceleration endurance 10 g (sine wave),



• Shock endurance 40 g (square wave),





















Fluence Technology 명진크리스텍 MJL CYSTEK Oscillator Yb: 1030 nm Truly All-Fiber Femtosecond Oscillator
